Cable Fault Locator
>
XHDD503E The Advanced Cable Fault Pinpointer for Precise Fault Point Detection

XHDD503E The Advanced Cable Fault Pinpointer for Precise Fault Point Detection

Product Details:
Place of Origin: Shaanxi
Brand Name: XZH TEST
Certification: CE
Model Number: XHDD503E
Detail Information
Place of Origin:
Shaanxi
Brand Name:
XZH TEST
Certification:
CE
Model Number:
XHDD503E
Color:
Blank
Gross Weight:
18kg
Package Dimension:
53*45*38cm
Trading Information
Minimum Order Quantity:
1unit
Price:
EXW 2050
Packaging Details:
wooden packaging
Payment Terms:
T/T
Supply Ability:
500 units per month
Product Description
XHDD503E The Advanced Cable Fault Pinpointer for Precise Fault Point Detection 0
XHDD503E cable fault locator uses the principle of vibration pickup and electromagnetic induction to determine the specific location of the cable fault point. The physical phenomena such as vibration wave, sound wave and electromagnetic wave generated by the fault point flash over discharge are picked up by the special probe of the fixed-point instrument, amplified by the cable fault fixed-point instrument, and displayed and output. Finally, the precise position of the fault point is determined by the test person's hearing and vision. That is, the fault point of the cable is located directly above the cable and within the range of rough measurement.
Technical Data


Filtering parameters
Full pass
100Hz ~ 1 600Hz
Low pass
100Hz ~ 300Hz
High pass
160Hz ~ 1 600Hz
Band pass
200 Hz ~ 600 Hz
Channel gain
8 adjustable
Magnetic channel gain
8 adjustable
Step voltage gain
8 adjustable
Output gain
16 (0 ~ 112db)
Output impedance
350Ω
Acoustic magnetic positioning accuracy
less than 0.2m.
Step voltage positioning accuracy
less than 0.5m.
Path discrimination accuracy
less than 0.5m.
Function
BNR background noise reduction and mute noise reduction function
Display control mode
5 inch bright touch screen control.
Power supply
4*18650 standard lithium battery.
Standby time
more than 8 hours
Volume
428L*350W*230H
Weight
7kg
Ambient temperature
-25 ~ 65℃; Relative humidity: ≤ 90%.



XHDD503E The Advanced Cable Fault Pinpointer for Precise Fault Point Detection 1XHDD503E The Advanced Cable Fault Pinpointer for Precise Fault Point Detection 2

Features:

1. 5-inch touch-sensitive LCD ensures visibility under sunlight.

2. It has 4 test modes: standard mode, enhanced mode, noise reduction mode, and custom mode.

3. It has four positioning methods: acoustic measurement, magnetic measurement, acoustic and magnetic synchronization method, and voltage method.

4. It has background noise reduction technology and can choose from a variety of filtering methods.

5. It has BNR background noise reduction and mute functions.

6. It has path deviation indication function.

7. Equipped with multi-layer physical isolation signal sensors, waterproof grade IP65.

8. Built-in large-capacity lithium battery, long standby time, equipped with fast charger.

9. Small and lightweight, easy to operate and simple in interface.



Packing list

XHDD503E The Advanced Cable Fault Pinpointer for Precise Fault Point Detection 3

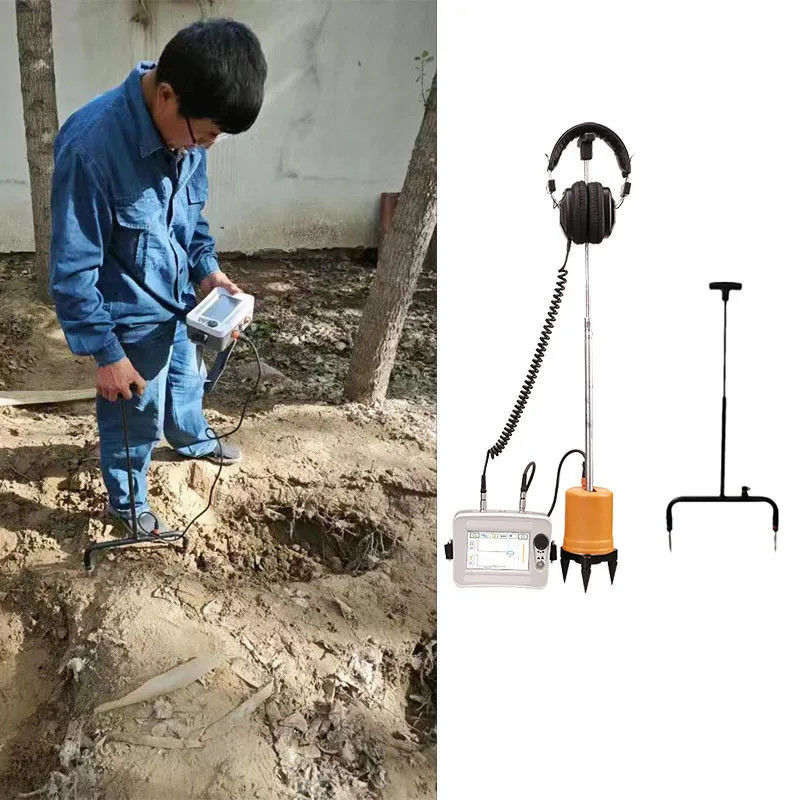

Onsite pictures:

XHDD503E The Advanced Cable Fault Pinpointer for Precise Fault Point Detection 4
