High Voltage Surge Generator for Cable Fault Location System 8kV/16kV/32kV 60mA 2048J 2KVA 120kg AC220V XHHV535-4TSB Hv Cable Fault locator
High Voltage Surge Generator for Cable Fault Location System 8kV/16kV/32kV 60mA 2048J 2KVA 120kg AC220V XHHV535-4TSB Hv Cable Fault locator
Product Details:
Place of Origin:
Shaanxi
Brand Name:
XZH TEST
Certification:
CE
Model Number:
XHHV535-4TSB
Detail Information
Place of Origin:
Shaanxi
Brand Name:
XZH TEST
Certification:
CE
Model Number:
XHHV535-4TSB
Highlight:
High Light
Highlight:
2048J High Voltage Surge Generator
,
32kV High Voltage Surge Generator
,
16kV High Voltage Surge Generator
Trading Information
Minimum Order Quantity:
1unit
Price:
EXW 15000
Packaging Details:
wooden packaging
Payment Terms:
T/T
Supply Ability:
100 unit per month
Product Description

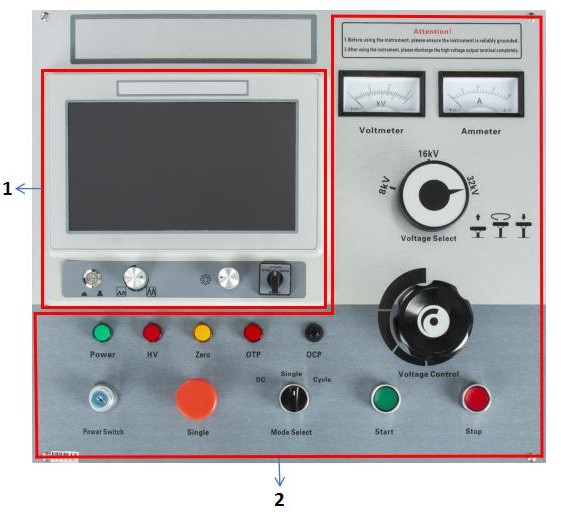

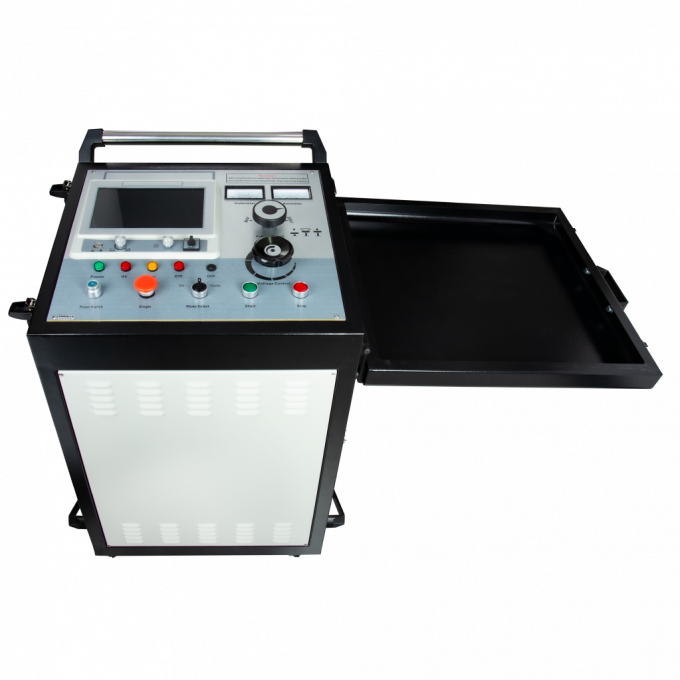

The XHHV535-4TSB cable fault location system is used to detect the main insulation fault of power cables with voltage levels of 35kV and below and calibrate the cable length. This system consists of two parts: a cable fault tester and a high-voltage pulse generator.
The cable fault tester adopts a simple operating software interface, centralized control by a single-chip microcomputer,touch-type operation, and a built-in large capacity lithiumion battery. It is stable, reliable, and easy to use. An independent power supply and power supply system are used to prevent power supply interference during impact discharge.
This cable fault test system is suitable for low-resistance, short-circuit, open-circuit and broken wire faults of power cables,high-frequency coaxial cables, street light cables, and underground wires of various materials with different cross-sections and different media, as well as high-resistance leakage and high-resistance flashover faults.
Technical Specification
The surge HV voltage
0-8kv/16kv/32kv
High voltage side current
0-60mA
Inside capacitor
4μF/32kV,16μF/16kV,64μF/8kV
Surge time
Auto surge about 4s, also can control by hands.
Surge energy
2048J
Surge power
2KVA
Weight
not more than 120kg
Power supply
AC220V±15%, 50Hz±2Hz
Environment temperature:
-20～+50℃

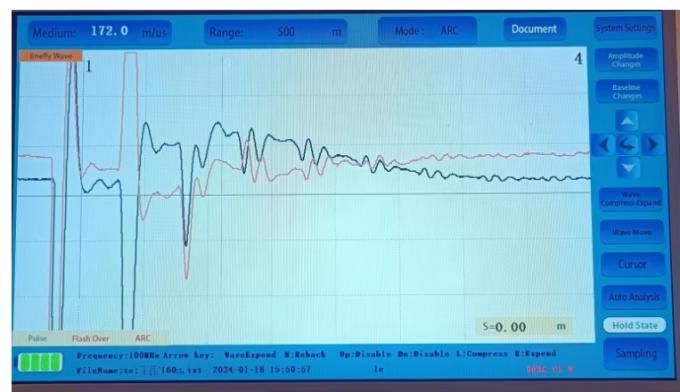

Cable fault pre-locator parameters:
• Sampling frequency: 1MHz~400MHz;
• Low voltage pulse amplitude: 300V±15%;
• Distance measurement range: ≥120km;
• Test range: 100m/300m/500m/1km/3km/5km/10km/25km/50km/100km;
• Pulse width: 0.15uS/0.30uS/0.60uS/1.20uS/2.4uS/5.0uS/7.5uS/10uS;
• Minimum resolution: 0.07m;
• Test blind area: ≤10m;
• Measurement error: ≤±(0.5%×L+1m), L is the cable length;
• Working power supply: built-in 10.4AH lithium battery; charging time is about 2 hours, working time is 5 hours
